UTG® ACCU-SYNC® 30mm Picatinny Cantilever Scope Rings, 37mm Offset, High Profile, RED
- UTG ACCU-SYNC® 30mm High Profile 37mm Offset Scope Rings, Comes in a Pair and Designed for a Precise Fit on MIL-STD-1913 Picatinny Rails

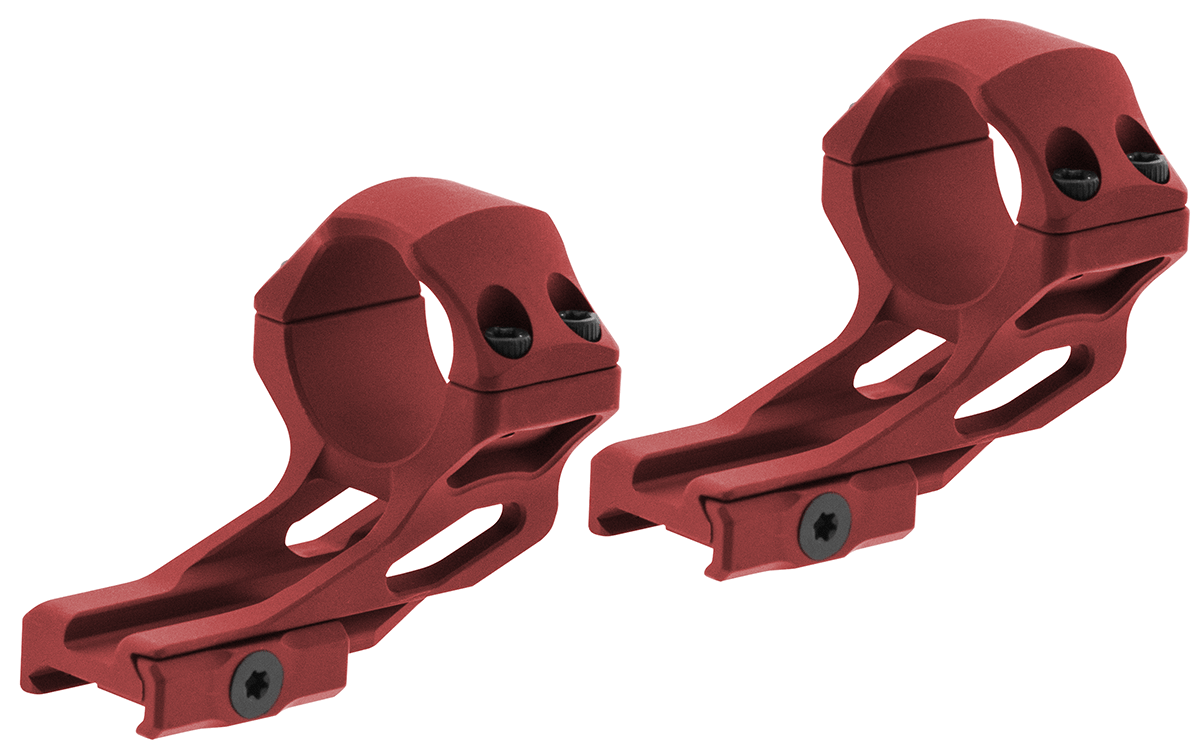

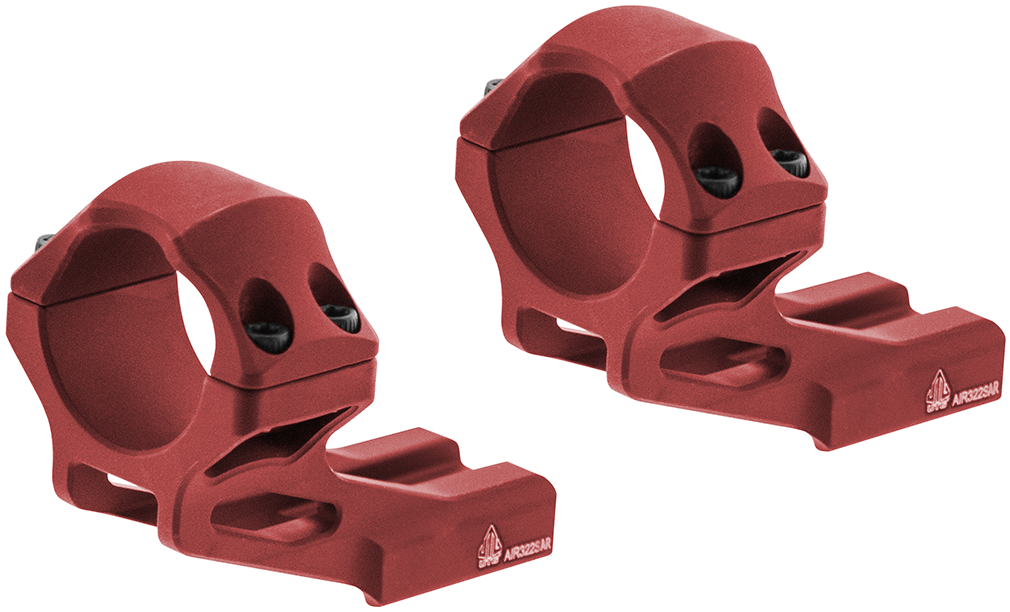

- Precision CNC Machined from Aircraft Grade Aluminum and Finished in a Red Anodize

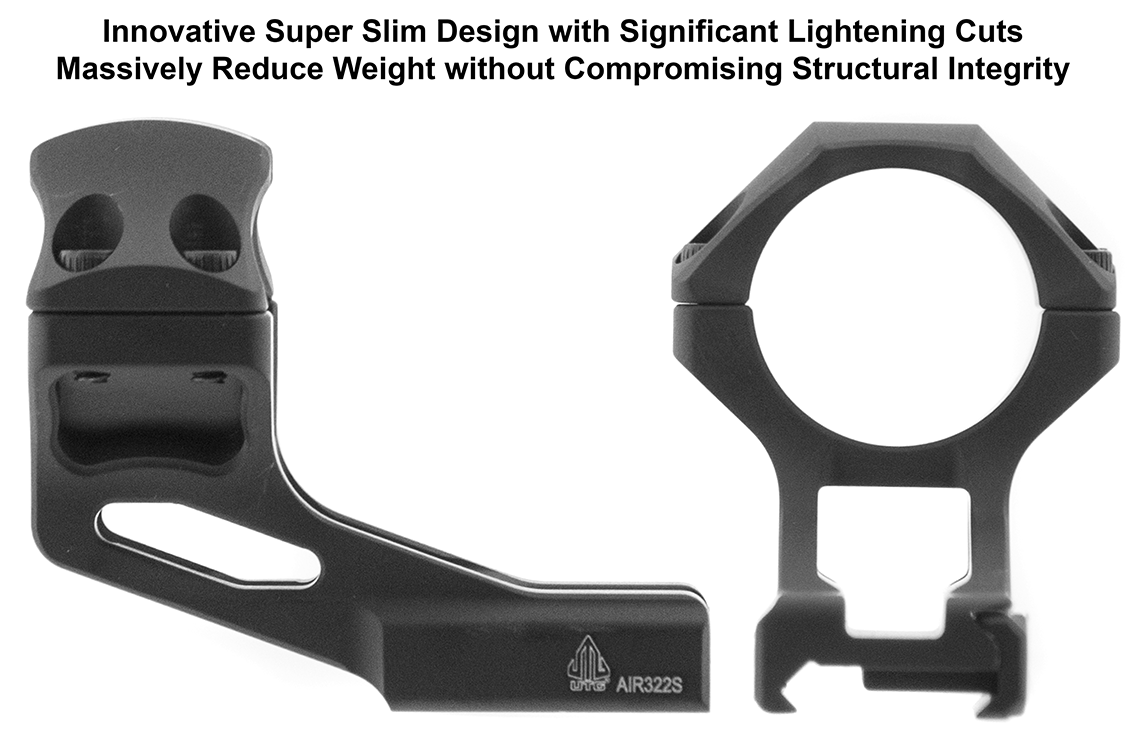

- Significant Lightening Cuts to Massively Reduce Weight Without Compromising Durability
- Radiused Edges and Corners to Prevent Snagging, Scratching, or Tearing of Other Gear and for Effortless Access to Scope Windage and Elevation Turrets
- Utilizes Locking Torx Screws and Square-shaped Integral Recoil Stops For a Secure Zero Hold
- 22mm Saddle Height, 37mm Offset Distance, 33mm Base Length, Fits 30mm Tube Optics with up to a 73mm Outer Objective Diameter
- Includes a T20 Torx Wrench for Simple and User Friendly Installation
- NOTE: We recommend to tighten the ring top screws with a torque value of about 25 inch-lb and the side plate screw with torque value of about 35 inch-lb.
| Base Length | 1.26 in (32 mm) |
|---|---|
| Center Height | 1.46 in (37 mm) |
| Inner Diameter | 30 mm |
| Length | 2.76 in (70 mm) |
| Max Fit Obj. Bell Dia | 2.87 in (73 mm) |
| Offset Distance | 1.46 in (37 mm) |
| Ring Width | .98 in (25 mm) |
| Saddle Height | 0.87 in |
| Saddle Height | .87 in (22 mm) |
| Width | 1.84 in (46.7 mm) |
